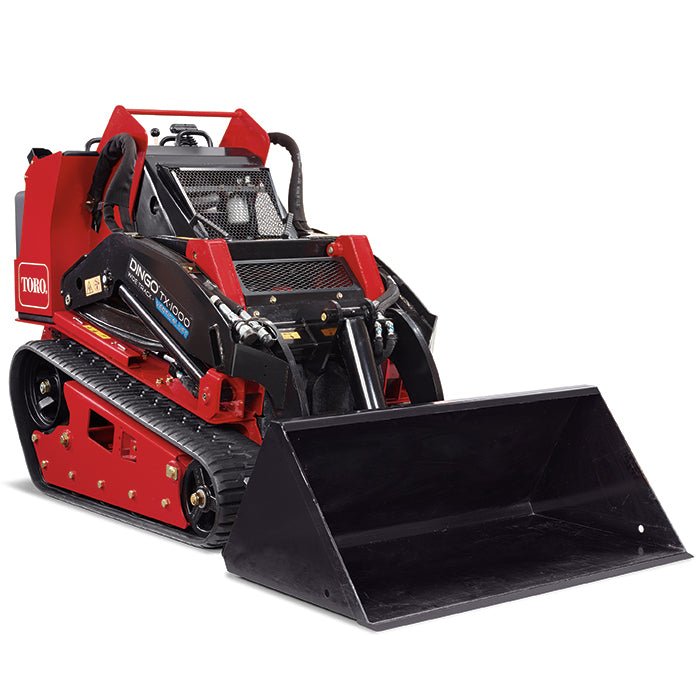

Loader Bucket Attachment 9 Cubic Feet

Designed for Dingo® TX 1000, volume = 9.0 cubic feet. This high volume loader bucket attachment is great for moving rock, dirt, sand or other materials off and around the job site. Ideal for jobs with large amounts of material to move.

Capacity Heaped: 10.5 ft³ (0.3 m³)

Capacity SAE Struck: 9.0 ft³ (0.25 m³)

Construction: Fabricated, welded steel frame

Height: 17 in. / 42 cm

Length: 29 in. / 73.6 cm

Maximum Load: 600 lbs / 272 kg

Models: Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300

Mounting Frame: Dingo® quick-attach mount plate, fabricated, welded base

Quick Couplers: Dripless, flush face quick couplers

Weight: 253 lbs / 114.8 kg

Width: 53 in. / 132 cm
